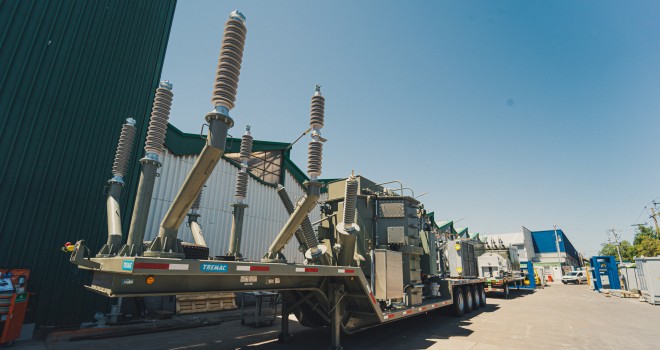

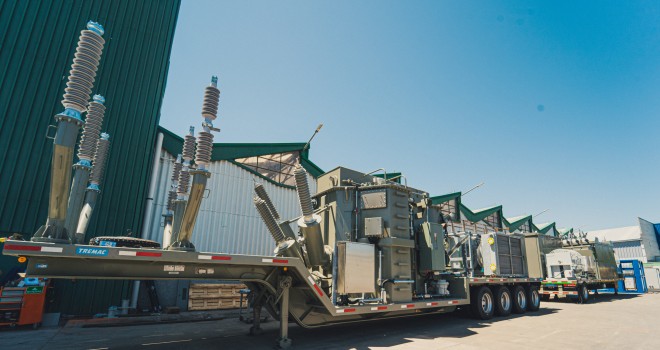

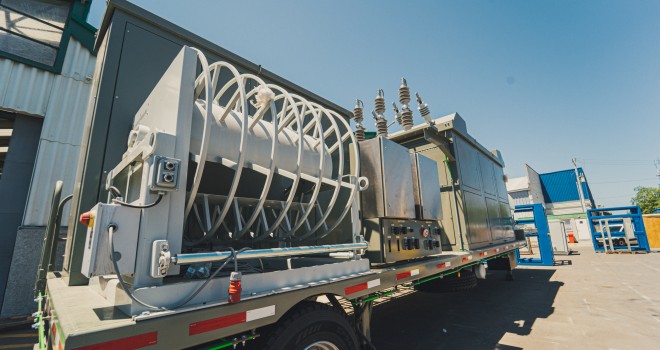

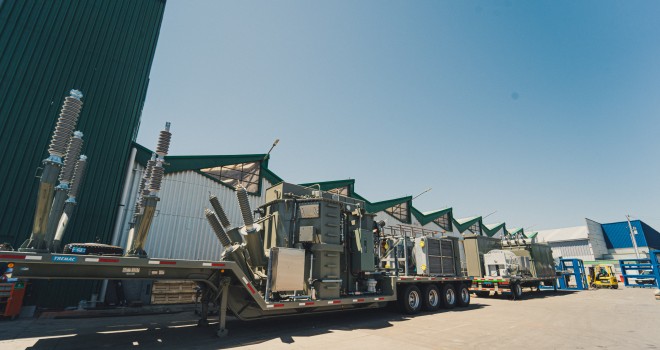

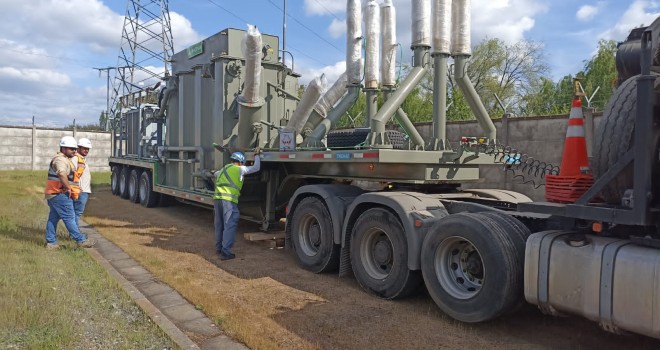

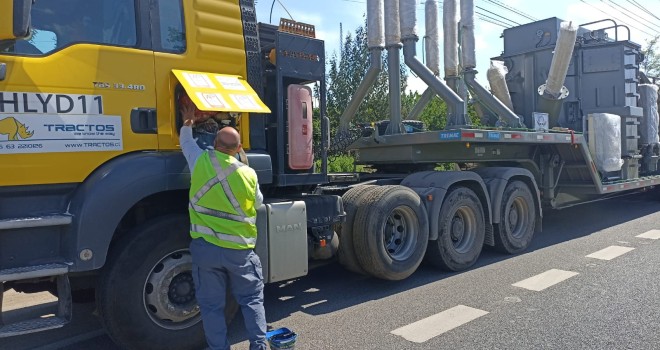

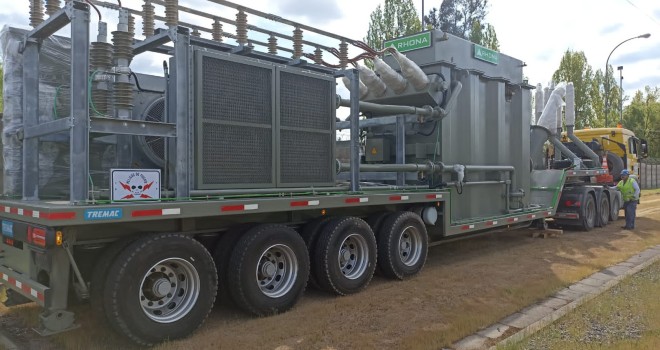

RHONA’s Mobile Substations are designed as compact, transportable solutions that enable fast and flexible power deployment for a wide range of industrial and utility applications. These turnkey systems integrate key substation components—such as power transformers, medium- voltage switchgear, and protection systems—mounted on trailers or skid platforms, allowing rapid mobilization and installation.
Our mobile substations are ideal for temporary energy supply, emergency response, maintenance operations, and fast-tracked infrastructure projects. Each system is engineered to meet the specific technical, dimensional, and environmental requirements of the client.
Key Features
- Fully integrated design (power transformer + switchgear + protection and control)
- Rapid deployment and plug-and-play functionality
- Compact footprint and easy transportability
- Suitable for outdoor operation in demanding environments
- Manufactured in compliance with international standards (IEC, ANSI, IEEE)
Technical Specifications
- Power Rating: Up to 30 MVA
- Voltage Levels: Up to 66 kV (primary), 15 kV or 24 kV (secondary)

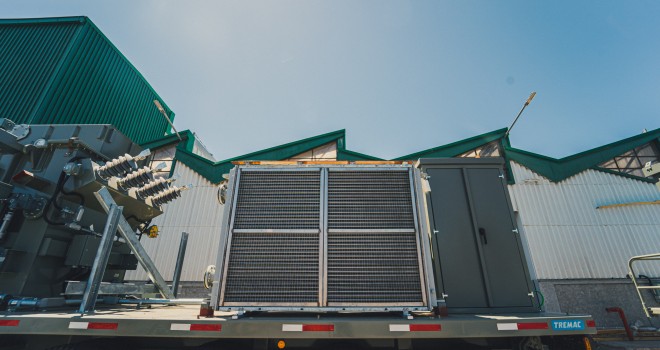

- Cooling Systems: ONAN / ONAF
- Trailer Types:
- Skid-mounted

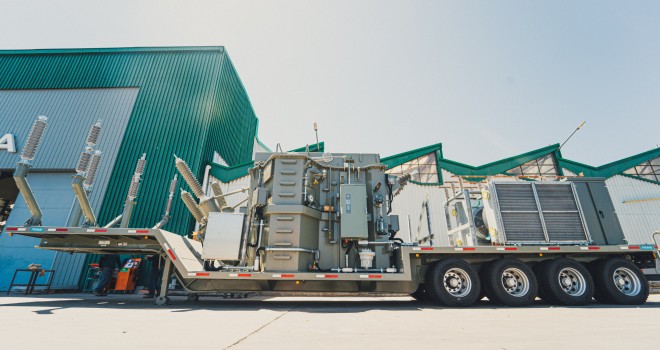

- Semi-trailer (2 or 3 axles)
- Transformer Type: Hermetically sealed or with conservator tank
- Switchgear:
- Primary: Outdoor SF6-type or compact GIS
- Secondary: Air-insulated or GIS-type switchgear
- Protection and Control: Digital relay panels with local and remote communication
- Auxiliary Services: Battery systems, chargers, auxiliary transformer, and internal lighting
Optional Equipment
- Remote monitoring and SCADA integration
- Gas and temperature monitoring systems
- Lifting and leveling systems for fast setup
- External lighting and fire detection systems
- HVAC system for control rooms
Applications
- Temporary or emergency power supply
- Substation maintenance or upgrades
- Remote site electrification
- Renewable energy integration
- Utility and mining operations requiring high mobility and rapid deployment
RHONA’s Mobile Substations combine engineering expertise, manufacturing quality, and field-tested reliability to deliver power where and when it’s needed. Backed by over 60 years in the energy sector, RHONA provides end-to-end support from design to commissioning—now available for projects throughout North and South America.
